Installation instructions

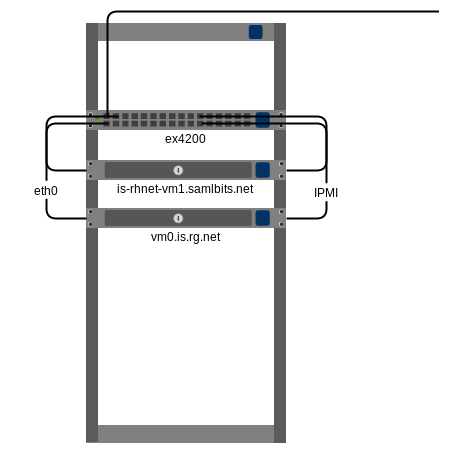

- Rack the switch (EX4200) and both servers in a 3U space
- Install a total of 5 power lines: 2 per server and 1 for the switch
- Install the following ethernet cables:
| From | To |
|---|---|
| ge-0/0/0 | RHnet router port |
| ge-0/0/1 | is-rhnet-vm1.samlbits.net eth0 |
| ge-0/0/2 | vm0.is.rg.net eth0 |
| ge-0/0/12 | is-rhnet-vm1.samlbits.net ipmi |
| ge-0/0/13 | vm0.is.rg.net ipmi |
- Boot the switch, allow to settle
- Boot the two servers
In case of failure the switch runs a dhcp server on me0 (backplane connection) for 192.168.1.0/24.
